Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 10:54 am

These 2 boards are made from Paulonia boards and joined with 2 inch carbon dowels. Both just under 42 inches long, 18 inches wide and 1/2-3/4 inch. thick. I used wood dye to color the tops but left the bottom stained. Drilled leash cord holes at nose angled from nose to tail/top to bottom. Sealed with spar varnish. Both fast and light. Fun to ride.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 10:58 am

Heres another design. 3 woods in this one...paulonia on the outside, poplar in the middle and basswood inlay between. Leash and center fin plugs on this one. Conditioned with tung oil. 4 feet long, 20 inches wide and 3/4 thick. Used biscuit joiner on this one.
Last edited by MDS on Sat Mar 21, 2015 11:02 am, edited 1 time in total.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 11:01 am

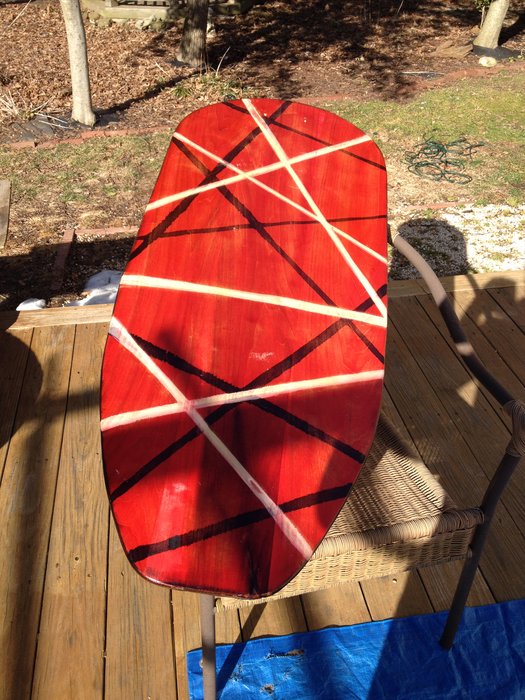

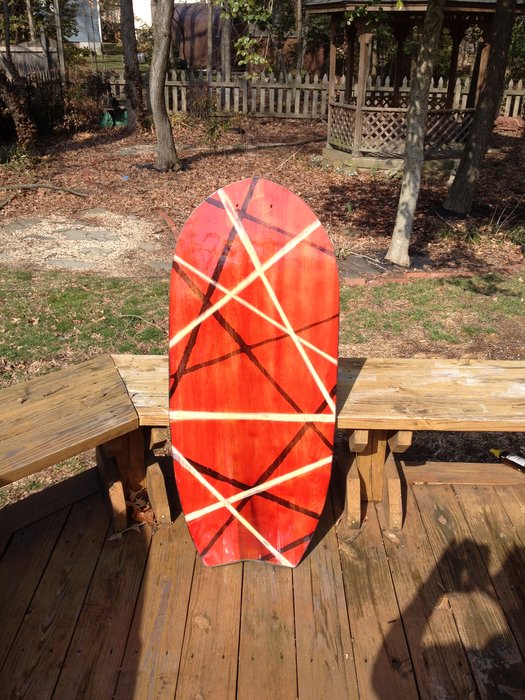

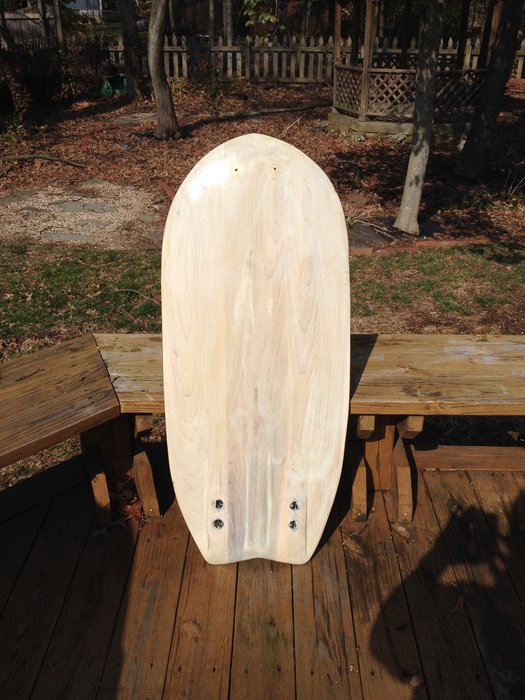

Hers another...fun one. Its my Eddie Van Halen board. All poplar...finished with spar. 4 foot long, 20 wide and 3/4-1 thick. Cut grooves in bottom to channel water and installed side biter fin plugs. I may cut it down to lighten it up...maybe change tail into a fish.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 11:10 am

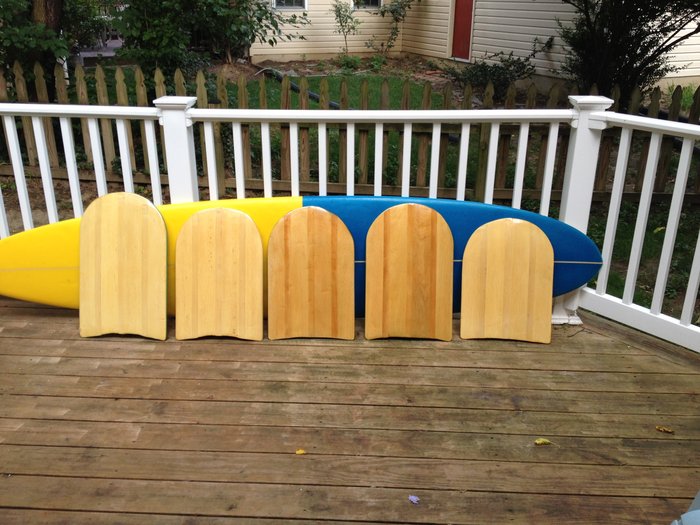

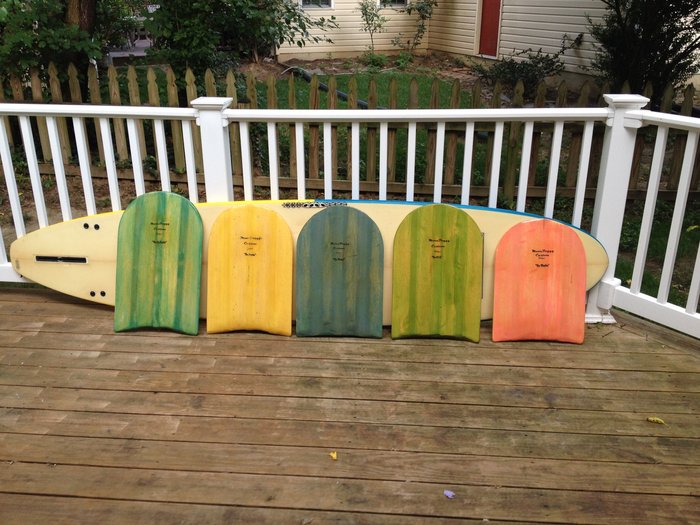

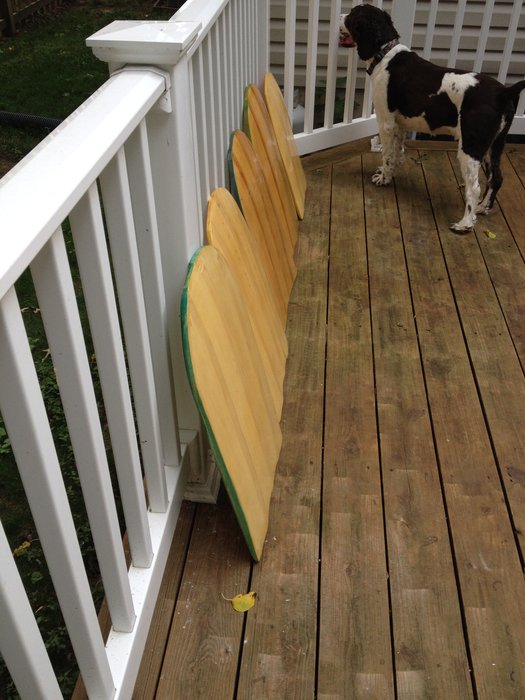

My first boards...made them for the Family...different sizes. All balsa and basswood...colorful. Fun boards. Joined with carbon pieces, dyed and finished with spar varnish.
More pics of other styles to come!

User avatar
bgreen
Big Wave Charger
Posts: 1103
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz
Contact:

Re: Some Different Board Designs

Unread post by bgreen » Sat Mar 21, 2015 4:20 pm

Nice woodwork there. They are a long way from that paddleboard in the background. How do you find these short boards to surf?

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 4:31 pm

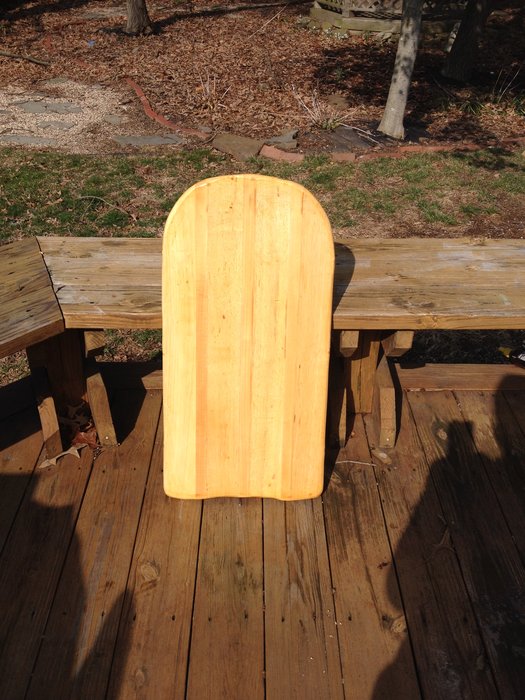

This was the second style I made...balsa and basswood. maybe 18 wide and 28 long. I used hardwood dowels all the way through all of the boards to join these. Spar finish.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 4:39 pm

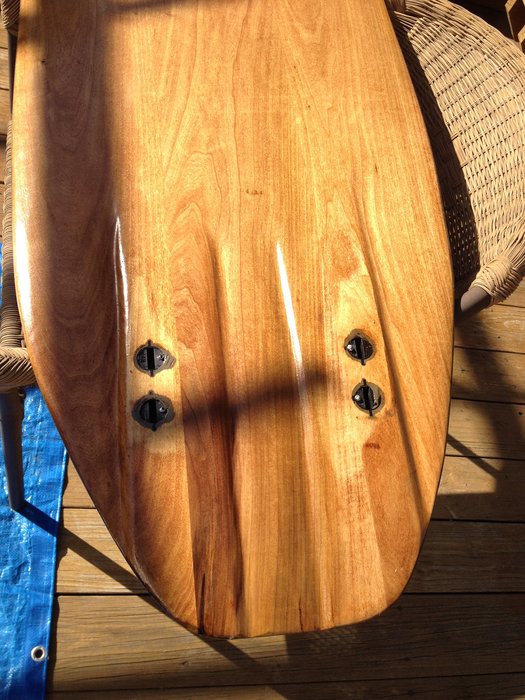

Another version of the Eddie Van Halen stripe...this time a fish with side biter fin plugs...all poplar and spar finish. "Slide Fast...Wear Stripes"

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 4:41 pm

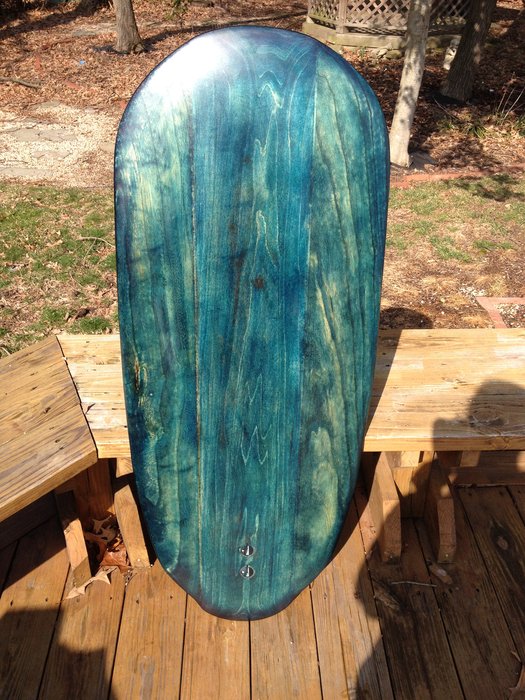

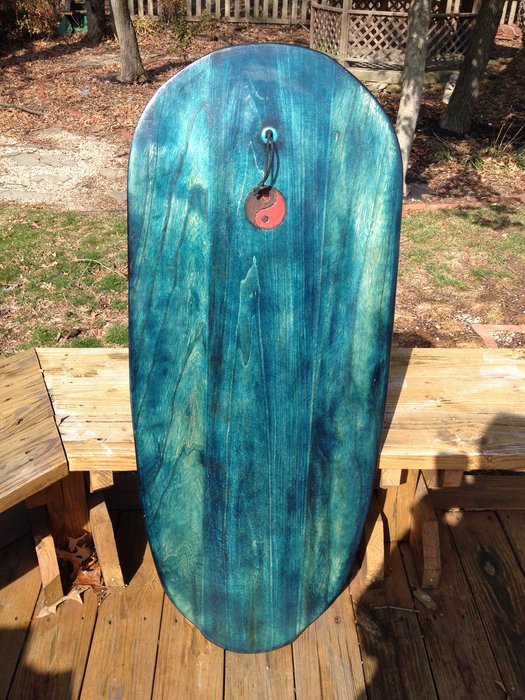

My Yin Yang board. Poplar, paulonia and basswood. Tung oil finish. Leash and center fin plugs. Wood dye again for the color.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 4:43 pm

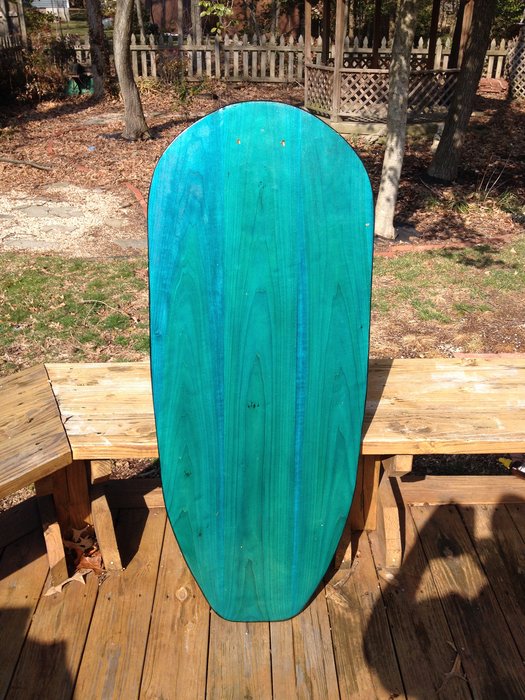

Slightly different shape...paulonia and poplar...tung oil finish with center fin and leash plugs.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 4:50 pm

Last one for now...all poplar with spar finish. Wood dye front. Grooves cut into tail. 48 inches by 19 inches.

davehahn
Big Wave Charger
Posts: 35
Joined: Sun Jan 18, 2015 3:29 am
City: San Francisco
State or Province: CA
Country: USA

Re: Some Different Board Designs

Unread post by davehahn » Sat Mar 21, 2015 4:58 pm

Cool boards. Nice work.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 5:01 pm

bgreen wrote:Nice woodwork there. They are a long way from that paddleboard in the background. How do you find these short boards to surf?
They are very light and floaty...lots of fun. Not that different from a boogieboard really just the wooden version. I made one for each of my kids and my Wife...so different sizes with the biggest one on the left for me. Definitely a long way from the board in the back of the pic. Thanks for commenting...wasn't sure I was posting these so that anyone else could see them!

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Sat Mar 21, 2015 5:02 pm

davehahn wrote:Cool boards. Nice work.
Thanks Dave!

flojo
Big Wave Charger
Posts: 75
Joined: Mon May 14, 2012 1:54 am
City: pacifica
State or Province: california
Country: usa
Location: pacifica, ca

Re: Some Different Board Designs

Unread post by flojo » Sat Mar 21, 2015 11:57 pm

very cool boards--where do you get all the different woods?

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Thu Apr 16, 2015 12:34 pm

flojo wrote:very cool boards--where do you get all the different woods?
I get the poplar from a local wood company and mill...get the rough boards. The paulonia comes from a place in GA. 199.00 for 3 boards... 8ft long 6 inches wide x1 1/8 thick. Ready to work with...planed and smooth. That's the best price for paulonia I have found. Basswood and balsa from an the cheapest online company I can find at the time I need it.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Tue Sep 22, 2015 11:57 am

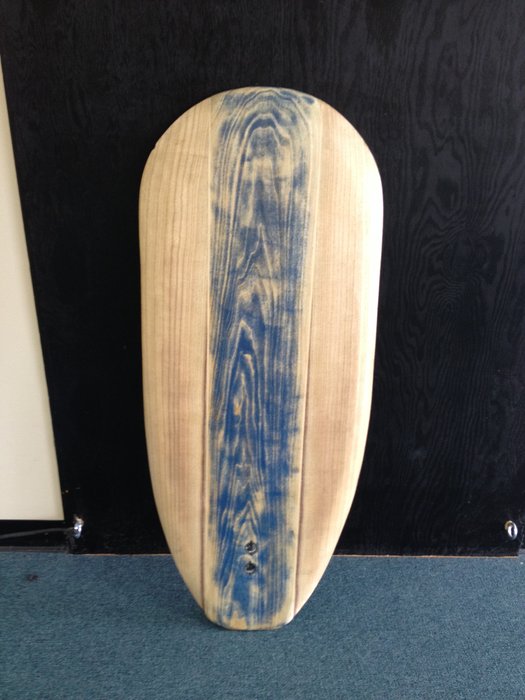

Revised shape. Paulonia/poplar/basswood with tung oil finish.

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Tue Sep 22, 2015 11:59 am

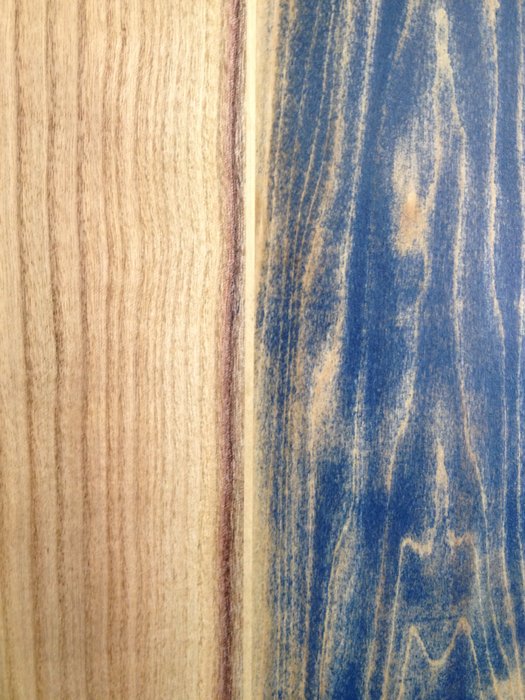

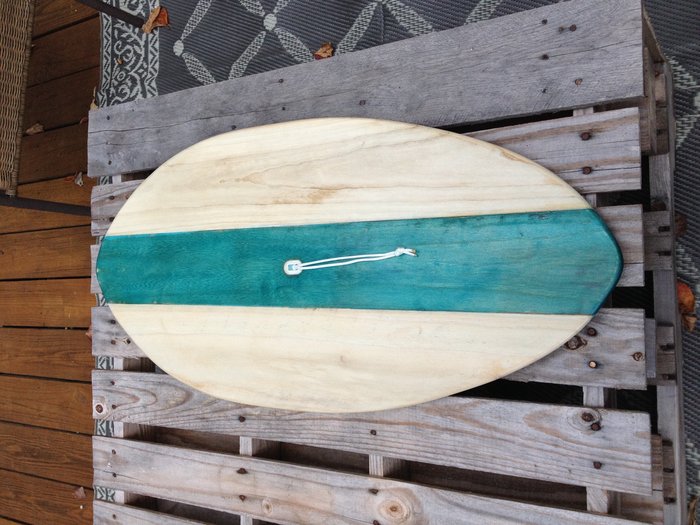

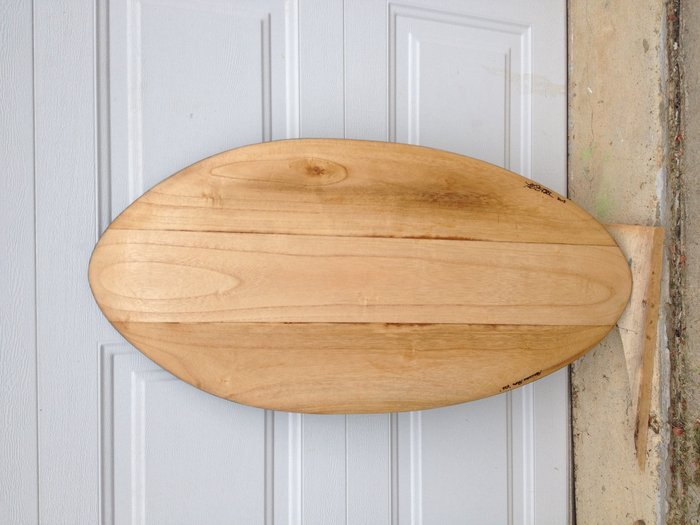

newest board, all pawlonia...gonna be tung oil finish but not done yet. Has leash plug in center of board so you can ride it both ways.

mrmike
Big Wave Charger
Posts: 192
Joined: Fri Sep 16, 2011 3:36 pm
City: coronado
State or Province: ca
Country: United States

Re: Some Different Board Designs

Unread post by mrmike » Thu Sep 24, 2015 10:14 am

I like the way you use the color stain I also have used some. nice boards

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Tue Sep 29, 2015 6:17 pm

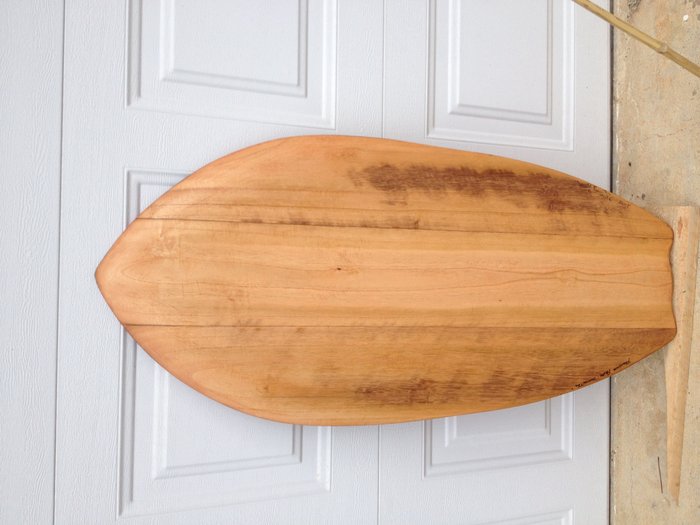

Pawlonia swallow tail
Attachments

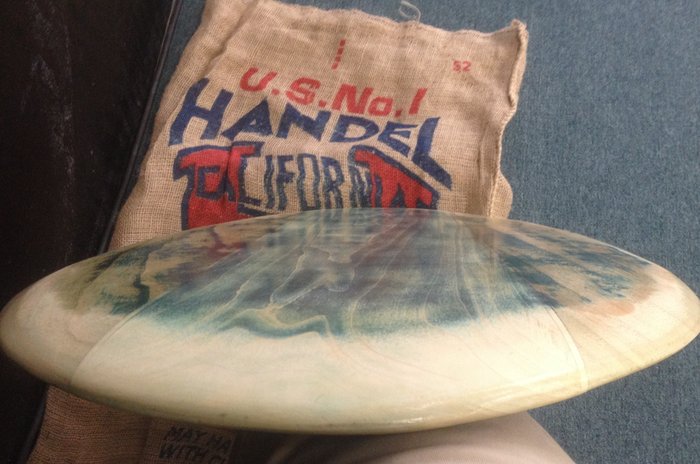

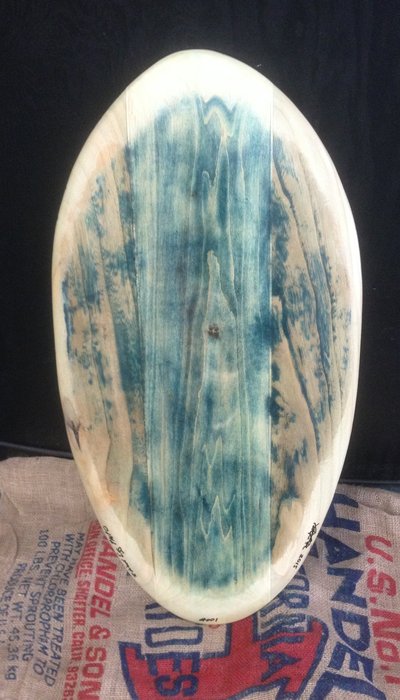

Pawlonia egg for my Daughter

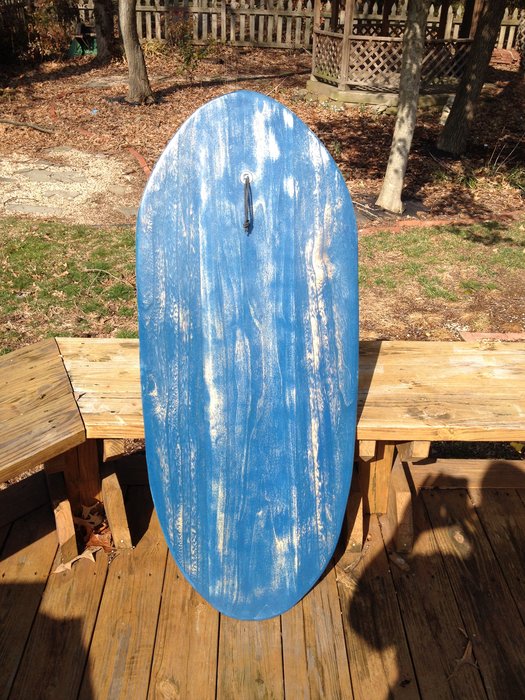

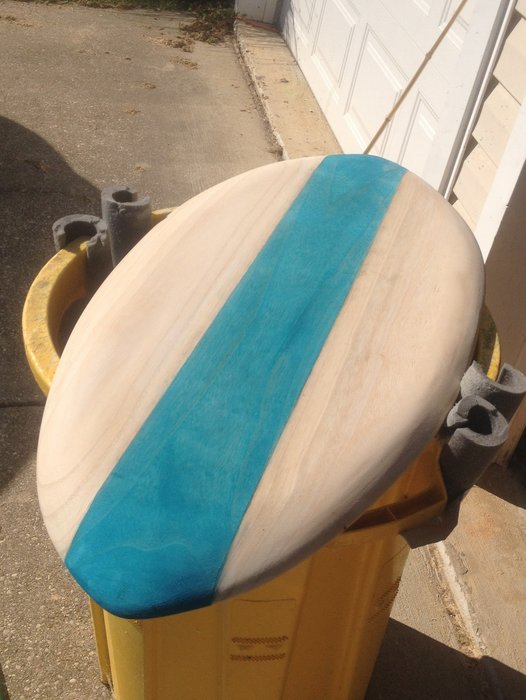

another shot of the blue and white. Leash plug
In the center so you can go both ways.
Pawlonia egg

MDS
Big Wave Charger
Posts: 43
Joined: Thu Mar 19, 2015 8:56 am
City: Severna Park
State or Province: Maryland
Country: USA
Interests: Water, Home Brewing, People, Fitness and Health, more.

Re: Some Different Board Designs

Unread post by MDS » Fri Oct 02, 2015 3:37 pm

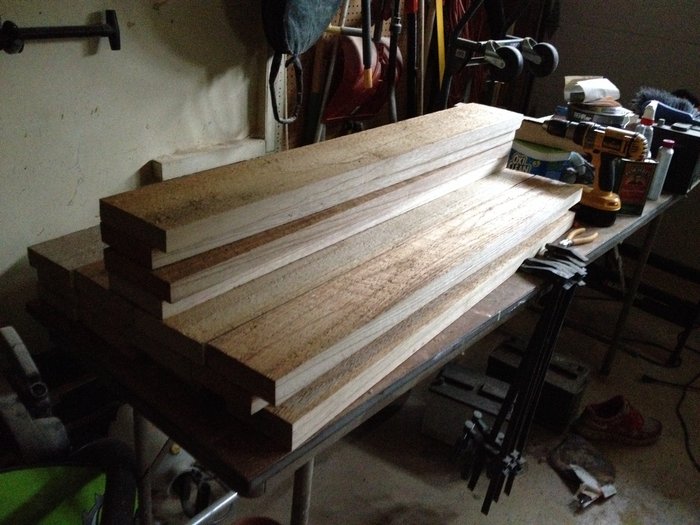

A new load of pawlonia
