4'10

Unread post by Pes78 » Tue Nov 07, 2017 12:22 am

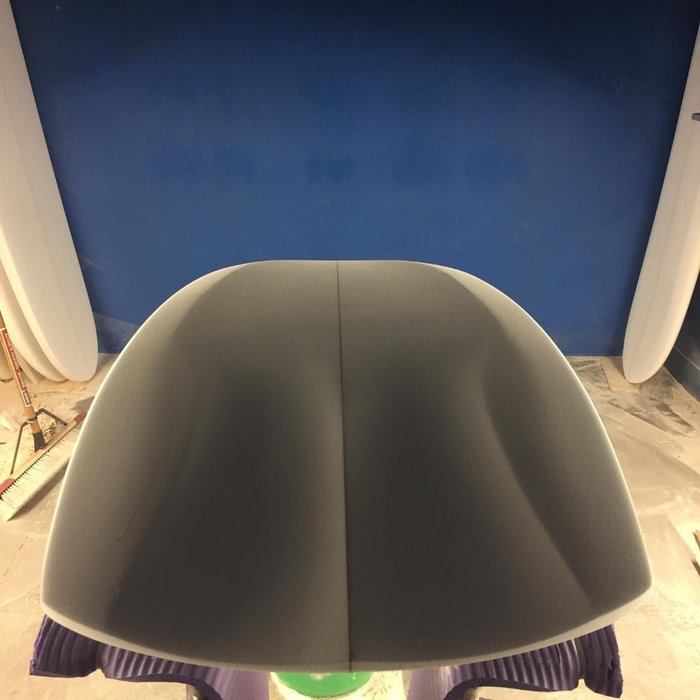

Have a board in the works being shaped by Tony Caramagna of TC Surfboards. Tony grew up in the Point Loma and Sunset Cliffs area here in San Diego and has made kneeboards before. He is very easy to work with and I feel I was able to tell him what I have trying to do in my shaping. He was very open to trying out something like this. The concave isn't very deep 3/4" of an inch in the center. The thickness out at the rails is 2.5" and the width is 22" wide. Length is 4'10" and he put his channel fish bottom on it. It has about a .25" concave running the length of the board going into a double through the fins, have it set up as a quad. Will ride this prone as well, just not feeling the shaping anymore. Trying to have a one board quiver which I know is impossible but with what I have planned for the future I may not have the space for multiple boards.
Attachments

User avatar
nomastomas
Big Wave Charger
Posts: 515
Joined: Thu Nov 17, 2011 2:30 am
City: Ojai
State or Province: CA
Country: USA
Interests: Surfing, cycling and fishing
Location: Ojai, CA
Contact:

Re: 4'10

Unread post by nomastomas » Tue Nov 07, 2017 2:38 pm

Interesting...do you have a shot of the bottom?
"This is a paipo site...isn't it?"
www.tp4surf.com

User avatar
rodndtube
Big Wave Charger
Posts: 1029
Joined: Thu Aug 18, 2011 10:34 pm
City: Arbutus Land
State or Province: Maryland
Country: USA
Interests: Waveriding, travel and the Paipo Research Project
Location: Maryland, USA & Where the Waves Are Breaking
Contact:

Re: 4'10

Unread post by rodndtube » Wed Nov 08, 2017 9:49 am

Photo angles can be so deceiving... looks like a round bottom to me!
rodNDtube
"Prone to ride"
I love my papa li`ili`i

"The sea doth wash away all human ills."
-- Euripides.

GeoffreyLevens
Big Wave Charger
Posts: 357
Joined: Sat Sep 17, 2011 9:58 am
City: Paonia
State or Province: Colorado
Country: USA
Location: Paonia, Colorado
Contact:

Re: 4'10

Unread post by GeoffreyLevens » Wed Nov 08, 2017 10:11 am

Looks to me as if it is on the racks w/ deck down so round deck and complex concave within a concave bottom

Pes78
Big Wave Charger
Posts: 262
Joined: Wed Jan 07, 2015 1:39 am
City: San Diego
State or Province: CALIFORNIA
Country: United States

Re: 4'10

Unread post by Pes78 » Wed Nov 08, 2017 1:59 pm

Actually it has a concave deck and that is in the pic in my first post. Will post another pic of the deck and the bottom tonight

jbw4600
Big Wave Charger
Posts: 289
Joined: Sat Nov 05, 2011 6:08 pm
City: Kentfield
State or Province: CA
Country: USA
Location: Fairfax, CA
Contact:

Re: 4'10

Unread post by jbw4600 » Wed Nov 08, 2017 4:40 pm

Looks good Paul. But if you knee ride it, you will be banned from this forum.

Pes78
Big Wave Charger
Posts: 262
Joined: Wed Jan 07, 2015 1:39 am
City: San Diego
State or Province: CALIFORNIA
Country: United States

Re: 4'10

Unread post by Pes78 » Wed Nov 08, 2017 11:21 pm

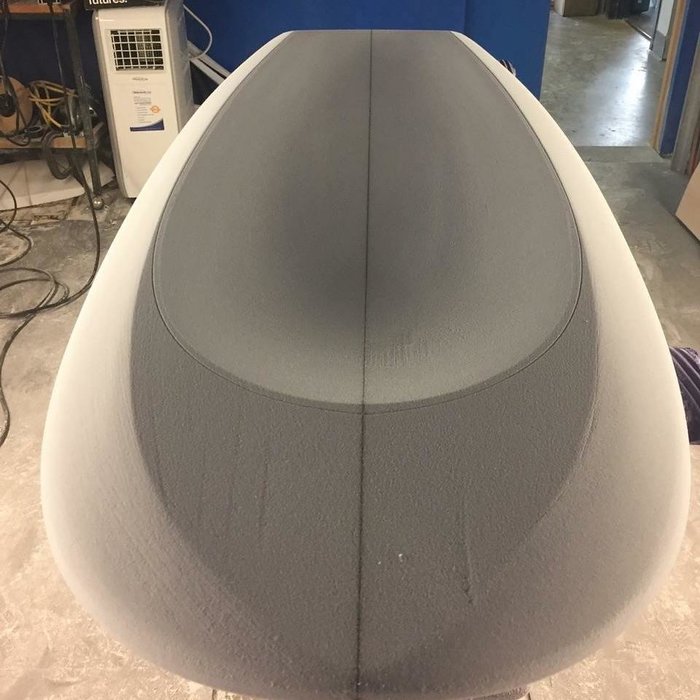

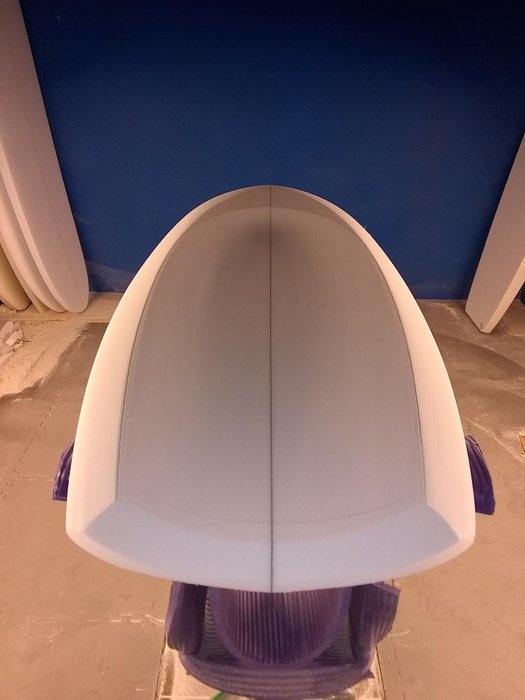

Very funny James. Here are some more pics...
Attachments

User avatar
nomastomas
Big Wave Charger
Posts: 515
Joined: Thu Nov 17, 2011 2:30 am
City: Ojai
State or Province: CA
Country: USA
Interests: Surfing, cycling and fishing
Location: Ojai, CA
Contact:

Re: 4'10

Unread post by nomastomas » Wed Nov 08, 2017 11:34 pm

Finned or finless?
"This is a paipo site...isn't it?"
www.tp4surf.com

Pes78
Big Wave Charger
Posts: 262
Joined: Wed Jan 07, 2015 1:39 am
City: San Diego
State or Province: CALIFORNIA
Country: United States

Re: 4'10

Unread post by Pes78 » Thu Nov 09, 2017 12:16 am

Running it as a quad but wouldn't be opposed to going finless. Getting a set of the Lovelace Piggyback quads.


https://goo.gl/images/3R8vKL

User avatar
krusher74
Big Wave Charger
Posts: 774
Joined: Wed Nov 07, 2012 3:53 pm
City: easkey
State or Province: co sligo
Country: Ireland
Interests: Surfing, vintage cars and motorbikes
Location: Easky, Co sligo , ireland
Contact:

Re: 4'10

Unread post by krusher74 » Fri Nov 24, 2017 8:47 pm

I feel like the concave deck makes a ridge outside of it on the rail, riding finless i'm usually over right on the rail, with my hip and elbow, would be interesting to see this ridden. I guess it would be more like greenough on a spoon.

What's the board thickness in the middle?

Pes78
Big Wave Charger
Posts: 262
Joined: Wed Jan 07, 2015 1:39 am
City: San Diego
State or Province: CALIFORNIA
Country: United States

Re: 4'10

Unread post by Pes78 » Mon Nov 27, 2017 1:01 am

I'll be putting a cove pad on it so I'd be pretty locked in. The Greenough thing is what I'm kinda going for. I would like to get some footage if me surfing it at some point. Thickness is 1.5" in the center, the concave deck is .75" and the bottom has .25" single before it goes into the double through the tail. Have to wait a couple more weeks to get this thing in the water.

GeoffreyLevens
Big Wave Charger
Posts: 357
Joined: Sat Sep 17, 2011 9:58 am
City: Paonia
State or Province: Colorado
Country: USA
Location: Paonia, Colorado
Contact:

Re: 4'10

Unread post by GeoffreyLevens » Mon Nov 27, 2017 10:49 am

krusher74 wrote:I feel like the concave deck makes a ridge outside of it on the rail, riding finless i'm usually over right on the rail, with my hip and elbow, would be interesting to see this ridden. I guess it would be more like greenough on a spoon.

What's the board thickness in the middle?
In films and stills it looks to me as if GG has his knees/shins very far apart, sort of wedged against the inner edges of the extreme concave on Velo. And given the amount of roll (how up on a rail he would get) there would be a lot of force driving the rail down into the wave face, much like prone with hip and elbow on the rail

CHRISPI
Big Wave Charger
Posts: 301
Joined: Sun Dec 28, 2014 2:48 pm
City: Durban
State or Province: Natals
Country: South Africa

Re: 4'10

Unread post by CHRISPI » Mon Nov 27, 2017 4:57 pm

It might move the centre of mass into a more hydromantic centre off efficiency

CHRISPI
Big Wave Charger
Posts: 301
Joined: Sun Dec 28, 2014 2:48 pm
City: Durban
State or Province: Natals
Country: South Africa

Re: 4'10

Unread post by CHRISPI » Mon Nov 27, 2017 4:57 pm

sorrey

CHRISPI
Big Wave Charger
Posts: 301
Joined: Sun Dec 28, 2014 2:48 pm
City: Durban
State or Province: Natals
Country: South Africa

Re: 4'10

Unread post by CHRISPI » Thu Nov 30, 2017 5:25 am

I was trying to explain that moving the hips away from the rail wash, out of the high pressure to low pressure curl. And how your hip affects fluid attachment to the inside tail rail area. I use foam ribs on my boards to place my hips out of the wave face

User avatar
bgreen
Big Wave Charger
Posts: 1051
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz
Contact:

Re: 4'10

Unread post by bgreen » Thu Nov 30, 2017 4:06 pm

On my latest board I noticed some drag from my body at various times. When I slightly altered my body position I noticed a small but noticeable burst of speed. On another board it was my elbow that was dragging, which resulted in spray to my face.

Lifting one leg also altered dynamics, to slightly readjust weight.

An interesting feature of Keith's board is the thickness - overall the board is intended to replicate a boogie board design so it is shorter and thicker than the boards I ride.

User avatar
nomastomas
Big Wave Charger
Posts: 515
Joined: Thu Nov 17, 2011 2:30 am
City: Ojai
State or Province: CA
Country: USA
Interests: Surfing, cycling and fishing
Location: Ojai, CA
Contact:

Re: 4'10

Unread post by nomastomas » Thu Nov 30, 2017 10:10 pm

The "G" variants have the wide point below center to keep the hips out of the water and a square or diamond nose to encourage a board holding position that places the arms/elbows on the deck, away from the wave face. Plus a deck concave to help keep the rider centered on the deck. I actually try to use a tailblock width equal to the riders hip width plus 1". Object = Nothing in the water but the board.
"This is a paipo site...isn't it?"
www.tp4surf.com

User avatar
bgreen
Big Wave Charger
Posts: 1051
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz
Contact:

Re: 4'10

Unread post by bgreen » Sat Dec 02, 2017 6:09 am

It could be the surfer rather than the board.
