Soft Surf Designs * www.rfd.cc/softsurf/

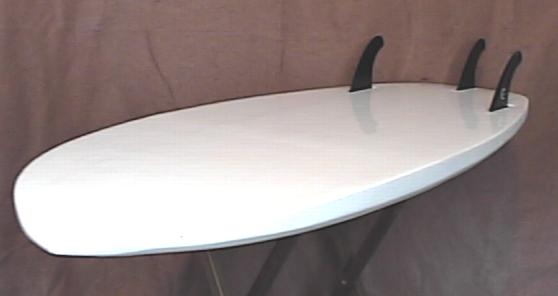

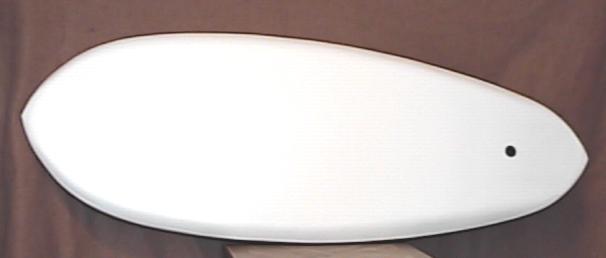

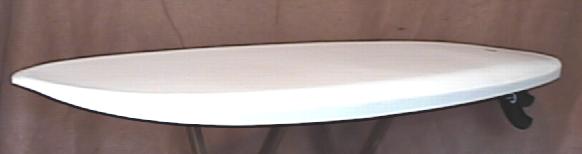

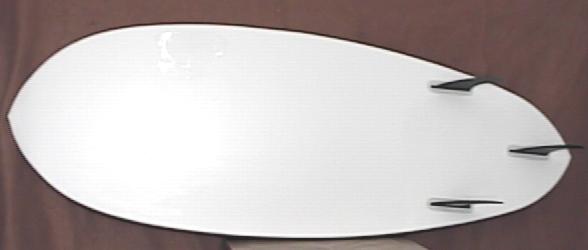

60 inch Soft Kneeboard

         Pintail Softy
         -------------
      Nose width: 0" (17.5" to 19" @ 12" from nose)
       Max width: 22" (measured @ 26" from nose)
      Tail width: 0" (15" to 17" @ 12" from tail)
          Length: 60"
          Weight: approximately 6 to 7 pounds
       Planshape: KB60-5, KB60-12, KB60-14
       Tailshape: pintail
            Core: PT Arcel-PF 310/512 @ 2.3pcf
       Stringers: twin carbon fiber tubes
       Deck skin: 3/16" 8pcf
Bottom rail skin: 3/16" 8pcf
     Bottom skin: Dupont Surlyn
           Rails: 45° top chine/7° bottom rail
     Nose rocker: approx. 2" to 3"
     Tail rocker: flat
        Tracking: twin or tri, boxed O'Fish'L fins
      Leash plug: Wahoo!
     Skin colors: white surlyn, white PE



These lightweight hybrid kneeboard designs are both stable and fast.   The boxed skegs make tracking a dream; and during shaping, the box(es) can be placed further aft for increased tracking or pushed forward for increased maneuverability.   They can be installed as a tri or twin fin setup.   The standard flared nose makes catching waves a breeze and aids forward planing; the pintail template lessens tail drag for speed.   The twin carbon fiber tube stringers are core embedded and make the boards *real* stiff, for down-the-line speed, yet still allow enough flex for bottom turn projection.   These are super FUN *real* kneeboards!



60" Soft Board | Soft Board 101 | Drawings

This page was reproduced by permission of Rob DiStefano.
