My new SDF surfboard Paipo

Unread postby krusher74 » Thu Nov 08, 2012 1:37 pm

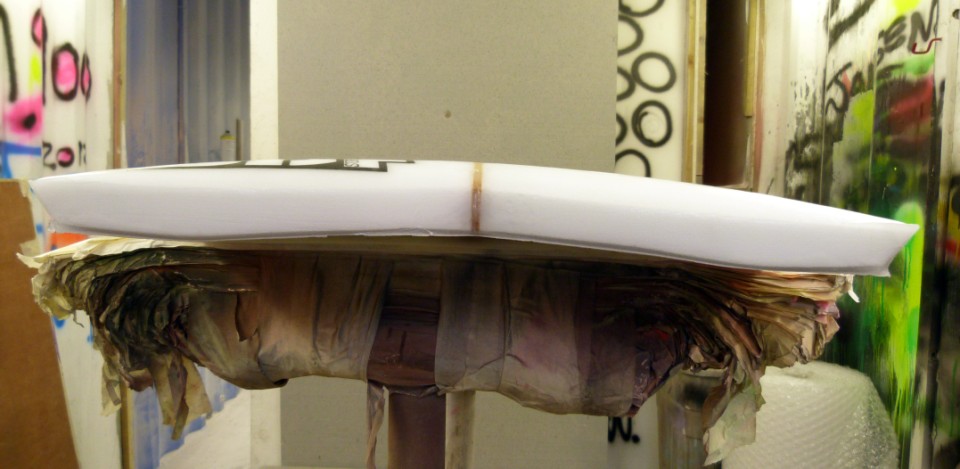

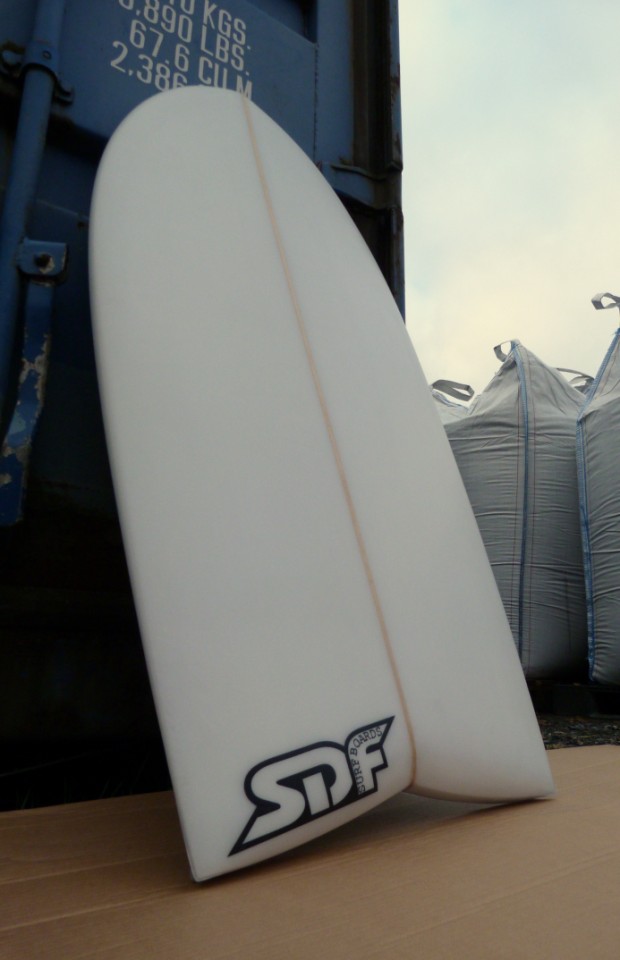

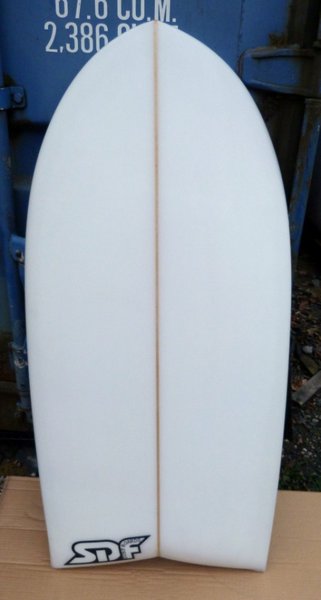

Well here are the first photos of my new paipo, it's glassed and hot coated but not sanded yet.

My two inspirations were:

Larry Goddard (named it the rincon rocket)

Tom Wegener's Seaglass tuna which I borrowed chine rail and concave from for finless use.
Attachments
SdF paipo 023.jpg
SdF paipo 007.jpg
SdF paipo 014.jpg
SdF paipo 016.jpg
SdF paipo 002.jpg
User avatar
krusher74
Big Wave Charger

Posts: 679
Joined: Wed Nov 07, 2012 3:53 pm
Location: Wales UK, (Sometimes cali in the winters)
City: swansea
State or Province: wales
Country: united kingdom

Re: My new SDF surfboard Paipo

Unread postby bgreen » Fri Nov 09, 2012 5:37 pm

Krusher,

It will be interesting to hear how your board rides. What are the dimensions?

One of the interesting things about paipo boards, is that many guys come at it from some other background so the type of board and how it is surfed is influenced by whether they were a bodysurfer, kneeboarder, standup surfer etc.

Bob
User avatar
bgreen
Big Wave Charger

Posts: 973
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz

Re: My new SDF surfboard Paipo

Unread postby ClanB » Fri Nov 09, 2012 5:47 pm

I agree bgreen about styles.
User avatar
ClanB
Big Wave Charger

Posts: 144
Joined: Sat Oct 01, 2011 12:48 am
Location: SoCal
City: Ventura
State or Province: CA
Country: USA

Re: My new SDF surfboard Paipo

Unread postby krusher74 » Sat Nov 10, 2012 6:15 am

The dimensions are on the last photo, but if you cant read them its. 44.1/4" long 21 3/8" wide and 2 5/8" thick.

yeah as you say, guys seems to come to paipos from all angles. My background being bodyboarding I have come at it from that angle, with the curve of this board being taken off my favorite bodyboard and basically being draw out to a point instead of the blunt nose. I went swallow tail on more aesthetics than anything.

The thing I was most worried about was rails, I stole from Tom wegeners seaglass design. Tom talks about it here, I hope my board does not suffer from a lack of flex.
http://www.youtube.com/watch?v=zxjeyrIUgqY

I wonder where paipos would have gone if the vast base of people on bodyboards were having all sorts of paipos made, but then I guess a bodyboard is a paipo its head first!
Attachments

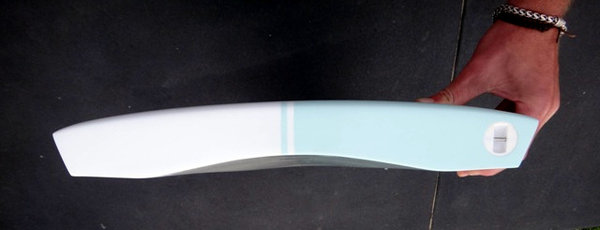

Tuna-5-3-concave-bottom (1).jpg
SdF paipo 007.jpg
User avatar
krusher74
Big Wave Charger

Posts: 679
Joined: Wed Nov 07, 2012 3:53 pm
Location: Wales UK, (Sometimes cali in the winters)
City: swansea
State or Province: wales
Country: united kingdom

Re: My new SDF surfboard Paipo

Unread postby krusher74 » Thu Nov 15, 2012 1:55 pm

ride report:

Will its works great, floats me fine, catchs waves easy enough, rail works (never spun out once) can release rail and 360 and get back on rail easy. Nice and fast!

happy man!
User avatar
krusher74
Big Wave Charger

Posts: 679
Joined: Wed Nov 07, 2012 3:53 pm
Location: Wales UK, (Sometimes cali in the winters)
City: swansea
State or Province: wales
Country: united kingdom

Re: My new SDF surfboard Paipo

Unread postby bgreen » Fri Nov 16, 2012 5:06 am

Krusher,

Thanks for the dimensions. The 3'8 1/4" was lost on my passing attention.

Good to hear you are happy with the design. Like all boards it will be interesting to find what it's limitations are & what it does well.

Bob
User avatar
bgreen
Big Wave Charger

Posts: 973
Joined: Fri Aug 19, 2011 5:17 pm
City: Brisbane
State or Province: Qld
Country: Oz

Re: My new SDF surfboard Paipo

Unread postby rodndtube » Fri Nov 16, 2012 7:56 pm

krusher74 wrote:ride report:

Will its works great, floats me fine, catches waves easy enough, rail works (never spun out once) can release rail and 360 and get back on rail easy. Nice and fast!

happy man!


I am trying to reconcile a couple of comments you made on Swaylock's (see below) and your report above:

  • "My first impression trying to catch a wave was that it maybe pushes water a little, either that or the tail drags having 1/4" tail rocker with the deep concave also added."
  • "So very happy, Only thing I would do for the next one if try to get it to glide into waves easier, maybe less tail rocker or a better nose entry design. Any idea guys?"
  • "The bodyboard with it flex does most things better, the paipo has a higher top speed and drives through barrels faster, but you can't take a really late drop/airdrop."
Regarding the first bullet I am curious about the nose section as I have not seen any good photos showing the nose rocker, bottom contour and rail shape & transition. On my Ashton paipos the shaper too often was making tweaks that were unwanted -- the nose shape and rail transition was one of those as planning in the forward position or even mid-board it would push water forward instead of having a clean release (the desired effect on my Austin Paipo boards):

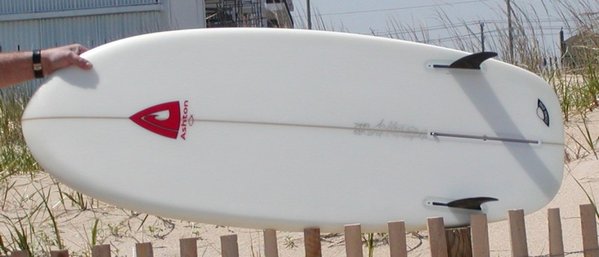

Note: This board came with these two fins since the the builder didn't have others... they are locked away in my fin storage compartment. I did try them out, in N. Oregon, but quickly caught a wave in and switched them out.

On bullet 2, tail rocker can help catching waves but also creates more drag. Seems like a contradictory statement, right? On a long board the tail rocker doesn't create as much drag... assuming we are not speaking of a banana rocker throughout the board. What happens that makes the bodyboard better than your paipo board?

Bullet 3... paipos and late drops/airdrops seem to be close to standard. There is something we are not connecting on here!
rodNDtube
"Prone to ride"
I love my papa li`ili`i

"The sea doth wash away all human ills."
-- Euripides.
User avatar
rodndtube
Big Wave Charger

Posts: 922
Joined: Thu Aug 18, 2011 10:34 pm
Location: Maryland, USA & Where the Waves Are Breaking
City: Arbutus Land
State or Province: Maryland
Country: USA

Re: My new SDF surfboard Paipo

Unread postby krusher74 » Sat Nov 17, 2012 3:40 pm

rodndtube wrote:
krusher74 wrote:ride report:

Will its works great, floats me fine, catches waves easy enough, rail works (never spun out once) can release rail and 360 and get back on rail easy. Nice and fast!

happy man!


I am trying to reconcile a couple of comments you made on Swaylock's (see below) and your report above:

  • "My first impression trying to catch a wave was that it maybe pushes water a little, either that or the tail drags having 1/4" tail rocker with the deep concave also added."
  • "So very happy, Only thing I would do for the next one if try to get it to glide into waves easier, maybe less tail rocker or a better nose entry design. Any idea guys?"
  • "The bodyboard with it flex does most things better, the paipo has a higher top speed and drives through barrels faster, but you can't take a really late drop/airdrop."
Regarding the first bullet I am curious about the nose section as I have not seen any good photos showing the nose rocker, bottom contour and rail shape & transition. On my Ashton paipos the shaper too often was making tweaks that were unwanted -- the nose shape and rail transition was one of those as planning in the forward position or even mid-board it would push water forward instead of having a clean release (the desired effect on my Austin Paipo boards):

On bullet 2, tail rocker can help catching waves but also creates more drag. Seems like a contradictory statement, right? On a long board the tail rocker doesn't create as much drag... assuming we are not speaking of a banana rocker throughout the board. What happens that makes the bodyboard better than your paipo board?

Bullet 3... paipos and late drops/airdrops seem to be close to standard. There is something we are not connecting on here!



So far My experiences are from only two surf sessions, so I may change my mind on some points when i get to surf it more. When i mention a bout pushing water, i'm not talking in a horrible bad way.

I find with the paipo the rigidness seems to push back at you when you paddle for a wave. with a bodyboard I push both front corners down onto the face o a hard to catch wave to manhandle myself on to it. (and when i say hard to catch wave i'm talking a wave a longboard would not get into very easily)

I dont know what happens when forcing the nose down on a bodyboard catching a wave, whether i'm keeping the board flat, forcing reverse rocker, but some how the paipo's boyancey and stiffness bounces back at me if i try to do they same.

I'm being very hard on the paipo here to try to find some areas for improvement. Its 95% there, so i;m splitting hairs really so far.

I will try to get you some better pics of it now its sanded tomorrow.

Its funny I have a "magic board" bodyboard that I love, but its got a bit torn up over the years,I had a custom bodyboard made as an exact copy. No they both turn and surf almost exactly the same, they rocker everything, both polypro cores and single stringer, but my old magic board just glides onto waves and the new copy feels like it pushes water a little. there never the same!!!

When i say late drop, i mean airdrop/unmakeable no speed falling take off.
User avatar
krusher74
Big Wave Charger

Posts: 679
Joined: Wed Nov 07, 2012 3:53 pm
Location: Wales UK, (Sometimes cali in the winters)
City: swansea
State or Province: wales
Country: united kingdom

Re: My new SDF surfboard Paipo

Unread postby rodndtube » Sat Nov 17, 2012 5:50 pm

No doubt that the fiberglass/foam or wood paipo is a harder surface than the sponge board... not to mention some of the sharp edges or points on some of the paipos.

Regarding the hard surface several people have added a coating of rubber on part or all of the deck surface (like you see on many kneeboards and stand-up paddleboards. I keep a pair of volleyball elbow or knee pads handy for my elbows in the event they start to bruise up after several days of riding.

I find the standard bodyboard (say 40 to 42") to be floatier than my paipo board.

Suspect that part of the difference in your "perfect" bodyboard and the "less perfect" has to do with the overall board rocker, board stiffness, and/or rail pattern. Could also be a small difference in board thickness... 1/4" makes a ton of difference over a 42x23 inch surface area.

On take-offs the sponge board does provide more flex in the forward section that might aid in making the drop by pushing hard on the nose section. I sometimes do this with my rigid board and it helps to get into the wave but usually, if it is a steep and not a slopey, weak wave it is not a factor. I also use my arms, in addition to my swim fins, to catch waves.
rodNDtube
"Prone to ride"
I love my papa li`ili`i

"The sea doth wash away all human ills."
-- Euripides.
User avatar
rodndtube
Big Wave Charger

Posts: 922
Joined: Thu Aug 18, 2011 10:34 pm
Location: Maryland, USA & Where the Waves Are Breaking
City: Arbutus Land
State or Province: Maryland
Country: USA

Re: My new SDF surfboard Paipo

Unread postby kage » Sun Nov 18, 2012 1:24 pm

what happens when forcing the nose down on a bodyboard catching a wave, whether i'm keeping the board flat, forcing reverse rocker, but some how the paipo's boyancey and stiffness bounces back at me

I think you need to back your weight off the board a bit and push the board forward. The "bend" that was the shape of the body board should be a combination of the arm and paipo. Hard to say, but it works for me.
kage
Big Wave Charger

Posts: 66
Joined: Fri Aug 19, 2011 2:48 pm
Location: Santa Cruz
City: Santa Cruz
State or Province: CA
Country: USA
